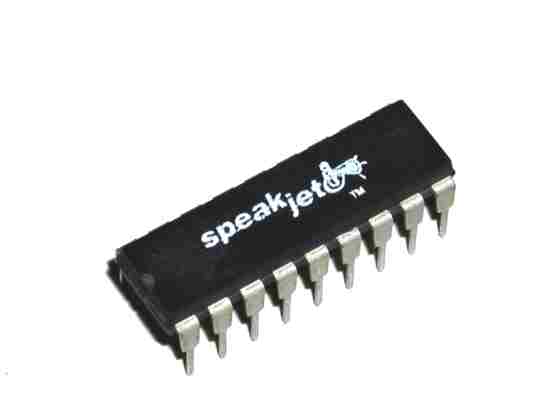

Our Biggest Little Product yet, The SpeakJet!!
Retail Price is $24.99
Distributor list for availability
Products:
MAGNEVATION PRODUCTS:
|
Our Biggest Little Product yet, The SpeakJet!! |
|
Retail Price is $24.99 |

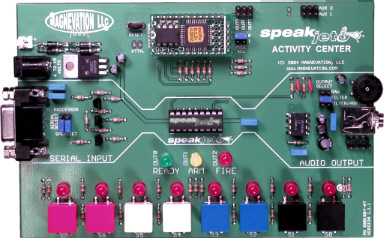

| SpeakJet Activity Center |
 |
Development board for experimenting and
developing applications around the SpeakJet™. Exploits all of
the SpeakJet™ capabilities.
An All In One board with:
|
| Product Name | Description | Technical Details | Part Number |
Price Each |
Please Visit our distributors |
| Activity Center |  |
|
B001004-AT |
$69.95 |
 |

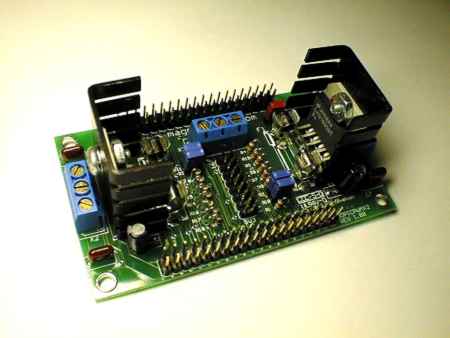

| Dual PWM Driver for OOPic™ |  |
Plug and Play for no solder operation. Dual independent PWM Drivers designed for DC permanent magnet motors, incandescent lamps, solenoids, resistance heaters etc.. This unit operates on 12-55 Volts DC with drive current up to 3 Amps continuous per channel. These units also include joystick port that utilizes standard PC style joysticks. This unit also includes pass through connector for connecting other accessories to the system. | |||
| Product Name | Description | Technical Details | Part Number | Price Each |
Please Visit our distributors |
| Blank Board | |
|
B001001-BB | $12.00 | |
| Assembled | |
|
B001001-AT | $75.00 | |

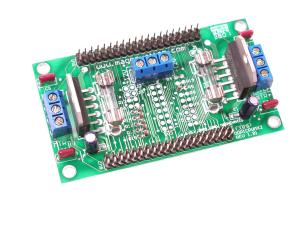

| Dual PWM Driver for OOPic™ |  |
Plug and Play for no solder operation. Dual independent PWM Drivers designed for DC permanent magnet motors, incandescent lamps, solenoids, resistance heaters etc.. This unit operates on 12-55 Volts DC with drive current up to 3 Amps intermittent per channel. These units do not include the joystick interface, current feedback option, the selectable jumpers for thermal warning or heatsinks. These are built on the standard Dual PWM Driver Module circuit board listed above but are for driving motors only, when you need a low cost alternative. The pads for the parts are there and the parts are easily installed if you need these features later. | |||
| Product Name | Description | Technical Details | Part Number | Price Each |
Please visit our distributors |
| Limited Edition | |
|
B001001-LT | $60.00 | |
| Logic Status Indicator for OOPic™ Basic Stamp II™ Basic X™ Atom™ |
 |
"Plug and Play" Logic Status Module for OOPic, OOPic II, OOPic II-C, Basic Stamp 24 and BasicX. An invaluable tool that you should not be without. Allows simultaneous display of all 31 I/O lines and doubles as a carrier board for 24 pin processors. Features include Low current consumption and Sunlight readable LED's for battery power, Pass-Thru design for troubleshooting code or hardware, serial I/O-programming port for 24 pin processors. Interface 24 Pin processors to OOPic 40 Pin standard. | |||
| Product Name |
Description | Technical Details |
Part Number | Price Each |
Please visit our distributors |
| Status Indicator | |
|
B001002-AT |
$49.95 | |
|

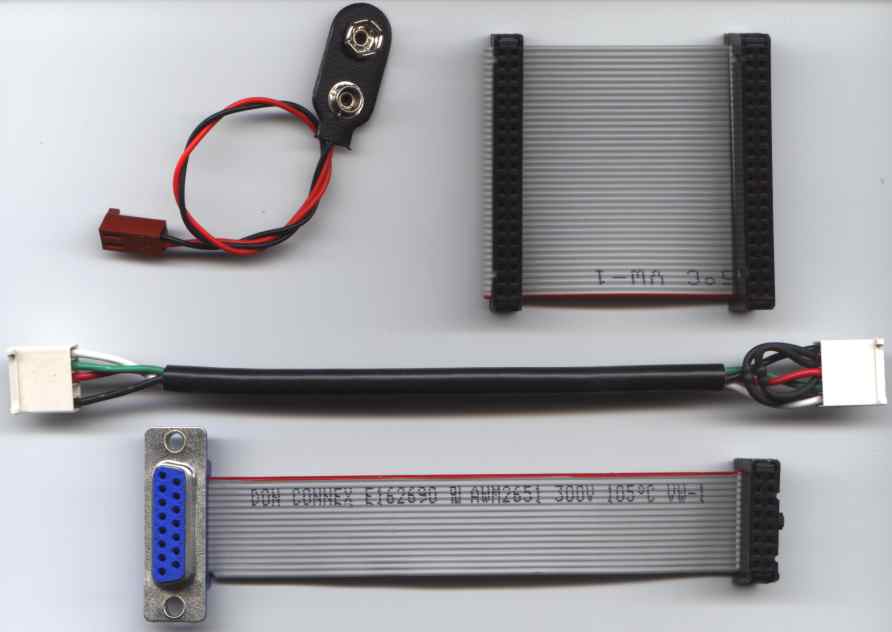

Cables and |
 |
|||
| Product Name |
Description |
Part Number | Price Each |
Please visit our distributors |
| Interconnect | |
C001002 | $8.00 | |
| Joystick Adapter | |
C001003 | $12.00 | |
| Network With Terminators | |
C003001 | $12.00 | |
| Network W/O Terminators |
|
C003002 | $10.00 | |
This page was last updated September 22, 2009
