Dual Channel PWM DC Motor Driver Board
Dual independent PWM channels, each channel is independently fused  with speed, direction, brakes, thermal flag and analog output to indicate motor current.
Data Pass - Thru design allow other accessories to be connected to the OOPic.  A stackable option connector allows driver board to rest on top of OOPic to save space.
Break out port  allows access to all 4 analog input channels on the OOPic as well as several important digital I/O channels.
Break Out Port also doubles as a Joystick input port utilizing standard inexpensive joysticks and back plane headers used by Personal Computers.
Small size, same as the OOPic 3.5" X 2.0"

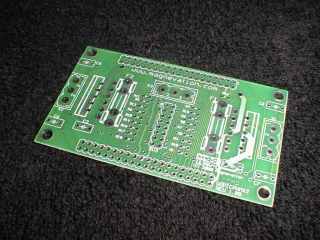

Circuit Board  is manufactured in the USA and is of the highest quality.  These boards are double sided, tined and plated thru holes, with solder mask on both sides, and parts legend on the top side.  The component holes are larger than most other cards on the market to allow easy changes and modification by the end user.  These blank board have been electrical tested and  visually inspected prior to shipping.
Price for bare circuit card is $12.00 US fund or checks drawn on US banks plus shipping (actual shipping cost) orders can be made from our home page, click on home link below.








OOPic.com

National Semiconductor's LMD18200T specifications


 Also OOPic/PWM combo packs are now available.

Last updated February 21, 2001


Copyrighted 2000, 2001 Magnevation
